Agate Origins and Formations

0

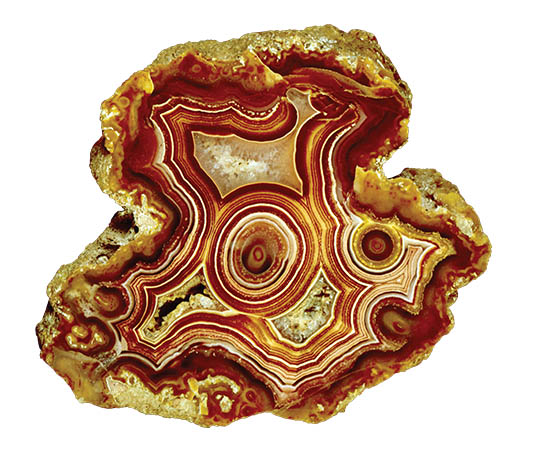

The great agate deposits of Mexico’s northern desert, which is the source of this example from the Stultz collection, are world famous. Bob Jones

By Bob Jones

Long before general society developed an understanding of crystallized minerals, ancient philosophers and later scientists were puzzling over how agates originate. They wrote about them and began using them in various ways, even imbuing them with special powers. Through the centuries, attempts were made to explain where and how agates originate, and a host of theories developed unsuccessfully.

From archeological excavations, we know agates were in use at least 6,000 years ago as tools, weapons, and personal adornment. In the following centuries, philosophers in early cultures like the Sumers of Mesopotamia in the Near East and later Greeks and Romans tried to explain agates. Cultures in those ancient times cherished agates and used them in a host of ways. Eye agates were often endowed with special powers.

Ancient Text Highlight Agates

One of the earliest Greeks to write about agates was Theophrastus from the Greek Island of Eresos. We know about him because some of his writings survived. One book he wrote, in about 300 B.C. titled Peri Lithon, “On the Stones,” survived and described rocks and minerals. The writing has a special meaning for many mineral collectors because it was the title Dr. John Sinkankas gave to his gem and mineral book company. A company from which many people built their mineral libraries, myself included.

The great agate deposits of Mexico’s northern desert, which is the source of this example from the Stultz collection, are world famous. Bob Jones

As Rome emerged as a dominant force in the Mediterranean, agates played a vital role in their culture. The noted Roman writer Pliny the Elder, who died during the eruption of Mount Vesuvius, wrote about agates in his Naturalis Historia. By this time, the name agate was thought to be derived from a known source, Sicily’s Achates River. Writers, including this one, always thought that was the original agate source, but there is plenty of evidence to dispute that. Agates were known long before in Egypt and the Near East. The island where Theophrastus was born produced agates several hundred years before agates sourced from Sicily.

The long story of the early history behind awareness of agate is beyond this brief article’s scope. If you are serious about the very early history of agates, you’ll find an excellent chapter in the two-volume set Agates Vol. I and II by Johann Zenz published by Bode, Hallern, Germany. Published in English and gorgeously illustrated with marvelous agates, each volume is over 600 pages. You can often find copies at major mineral shows like those held in Munich, Denver, and Tucson. In addition, it’s possible to find copies online as well.

Theories About Formation

For as long as agates have been collected and studied, people have devised theories on how they formed. There seem to be as many theories about agate formation as there are agate localities. And maybe that’s one answer to the variety of theories and certainly, the variety of agates collected. Agates are found in numerous localities and in widely varying environments, which can influence their formation. Yet, agates are found mainly in volcanic rock that presented an original temperature of 2,000 degrees Fahrenheit. Who knows what pressures are also involved in such a hot environment. We find other agates in sedimentary rocks that have never been above ambient temperatures. No wonder there is still confusion and disagreement over how agates form.

To discuss some of the theories about agates, we must first identify which agates we are describing. After all, there’s quite an assortment of them. Adding to the confusion is the host of local names given to agates by collectors. Some of the major groups of agates include; banded fortification agates, moss agates, and dendritic agates, among others. For our purposes, the theories I will explain is only fortification banded agates.

There is no doubt the early agates that appealed to people the most were the colorful banded agates. It would not be an overreach to consider banded fortification agates as the dominant and most popular form of agates from the beginning right up to today. After all, they are the most eagerly sought and bring some of the highest prices.

Banded agates are formed in volcanic environments and are the agates that usually come to mind when agates are considered. All other forms of agates fail in a comparison test with an excellent banded agate.

The theories about agate origin are generally grouped in two different overall methods of development. One theory says agates form from outside forces once in place. The other theories suggest agates form internally. In the first theory, the cavity in which an agate develops can start empty or containing undifferentiated silica gel, and later necessary ingredients for agates arrive. In other words, the original agate material arrived after the hot lava flows were in place. A typical theory of this type proposed by Peter Keller in his doctorate thesis is based on his observations of the beautiful banded agates of Mexico’s Sonora and Chihuahua Deserts. These multi-colored agates rank among the finest, most colorful agates found anywhere.

Dr. Keller theorized that the Mexican agates started as open gas cavities in volcanic

The earlier formed crystal sprays of this specimen, probably a zeolite, interfered with the growth of agate banding. BOB JONES

rock, which were later invaded by mineral-rich waters from nearby hot springs. These waters carried the necessary silica as well as metal ions for color. Keller related the banding to fluctuating wet-dry seasons common in the desert. As the hot springs surged forth, the waters would slowly infuse into the open cavities in the lava, forming a sequence of colored bands.

The other group of theories suggests everything was present in the lava’s cavity, silica gel, and impurities. The agate then formed internally from all the present material. A theory proposed along these lines was offered by Charles Schaub, a noted collector from the East Coast. I knew him and enjoyed chatting about agates with him at shows. Simply stated, Schaub proposed that the hot molten lava was moving along small globs of silica when gel would slowly gather together to form a larger sphere of silica gel, which was then locked in place as the lava cooled. This process meant the silica gel formed its own “cavity.” The banding then formed as the temperatures in the gelatinous mass slowly dropped and band after band developed with each temperature change. The colors were due to included mineral salts like iron oxide, which crystallized as temperatures varied during cooling. Each of these theories simply does not explain everything, a current problem, even with today’s leading theories.

The current theory that has a lot of support is explained in the Zenz Agates I book by theorist M. Landmesser. In my oversimplified summary of his work, Landmesser suggests that agates form in large cavities in a rock that is already filled with what he called pore solution. The natural material is a hydrothermal silica solution from which quartz separates, moving from an area of high concentration to an area of lower concentration. Over time a colloid forms and adheres to the walls of the cavity. Colloid particles of different sizes develop separately in bands. Again, this is a very simple explanation, and I suggest you read Zenz’s translation in its entirety.

One of the odd features in some banded agates is called either an entrance or an escape channel. Many banded agates have distorted banding that curves away from the normal linear pattern and extends to the agate’s outer rind. This development is cited as proof that material entered the cavity to form the agate, later hardening, and leaving behind the banded entrance path in a funnel-like design. The problem with this is that many of these funnel-like patterns don’t contact the outer rind of the agate. In some cases, this distorted pattern does reach the rind but usually not. There is often a gap between the rind and the upper end of the distortion.

More logical is the theory that such distortions are due to internal heat and pressure within the agate nodule itself. Once formed, agate is a closed system, and any temperature or pressure increases are trapped inside. Such heat and accompanying pressure do happen because the silicon dioxide bands are made of millions of micro-crystals of quartz, estimated to be about 30,000 to an inch. When silicon dioxide leaves a solution and crystallizes, heat is released. Imagine the heat generated by those millions of quartz crystals as they form quartz bands. With an increase in heat, there has to be an increase in pressure in a closed system. The bands themselves are still in a plastic-like state and can react to that pressure. The pressure can distort the still flexible bands if it pushes the bands toward the path of least resistance. In some instances, it may reach the rind, but often does not and instead results in the odd funnel form.

Development of Agate Band Colors

Another common question among agate collectors has to do with how the various colors get into the agate bands. The colors are due to oxidized ions of metallic elements like iron and manganese. You might think the micro-crystallized quartz that forms bands tightly fit together. They do not. This fact is proven when dye is introduced into an agate with metallic solutions. They can get into the bands because quartz crystals do not grow as smooth-sided crystals. They do not. They twist as they develop, and crowded together, there are microscopic spaces between them into which the sub-microscopic metal ions of iron oxide and others can enter. The process involves bringing color to an otherwise drab gray agate band. Keep in mind such ions can vary in both size and only enter spaces where they can fit.

Iron oxide and other metal oxides are responsible for the gorgeous colors we see in agates.
BOB JONES

Another feature seen in some agates is the crystals of some other minerals like aragonite or a zeolite that grew attached to the agate cavity’s inner walls. They seem to have formed before the agate bands formed. These initial crystals don’t survive. They rarely are coated with silica. Much more likely, they are replaced by the quartz during agate formation. In effect, these crystals are quartz pseudomorph after what first formed, usually aragonite or a zeolite. In some agates, a small form that is not attached to anything seems to be floating in the agate. These are probably molecules of the coloring agent like iron oxide. Every compound in solution has an affinity toward molecules of itself. It’s an electrical attractive and is why crystals grow in solution. It also adds to an agates beauty and mystery, a mystery yet to be solved.

It’s not surprising there are so many theories about how agates form. There are so many variable factors, temperature, pressures, chemistry, and other factors that can influence silicon dioxide as it forms we may never have a single answer regarding agate formation.
